RAM® UN7 X型-U型固定套件

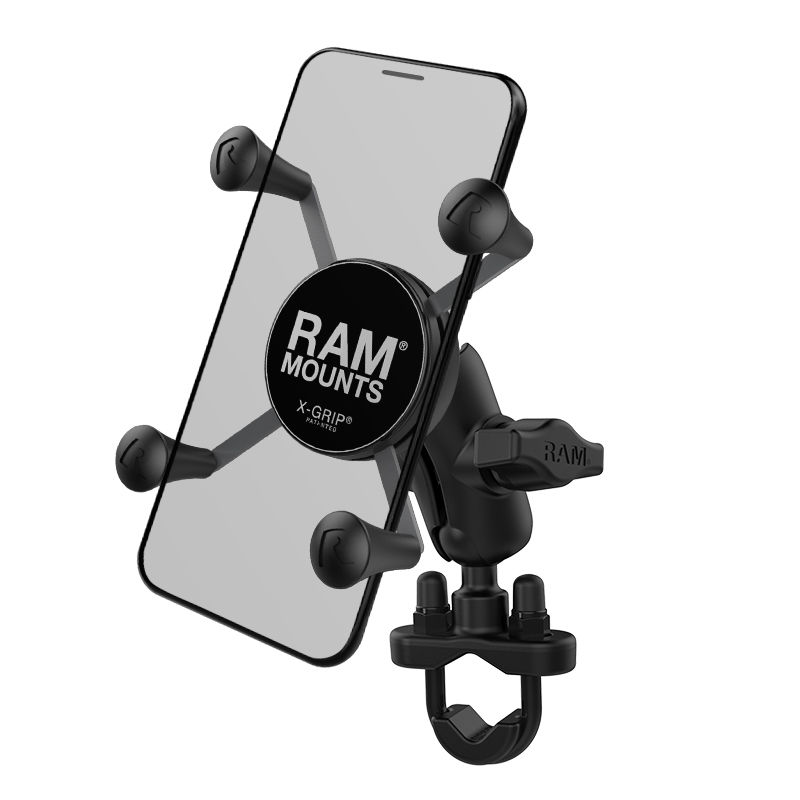

RAM® X-Grip® Phone Mount with Handlebar U-Bolt Base
RAM-B-149Z-UN7U-3"中支臂
RAM-B-149Z-A-UN7U-1.75"短支臂
OVERVIEWConsists of a zinc coated u-bolt base, double socket arm and universal X-Grip® cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25" / 4.72cm - 8.25cm
Depth Range: 875"= 2.2cm 以下
CLAMP RANGE: 直徑 .5" - 1.25" /1.27cm - 3.17cm
SOCKET-TO-SOCKET LENGTH: 1.75" or 3"
BALL SIZE: B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lbMATERIALS: Marine-grade aluminum, High strength composite, Stainless steel
