RAM® X型背夾-輪椅扶手固定套件-UN7/UN10

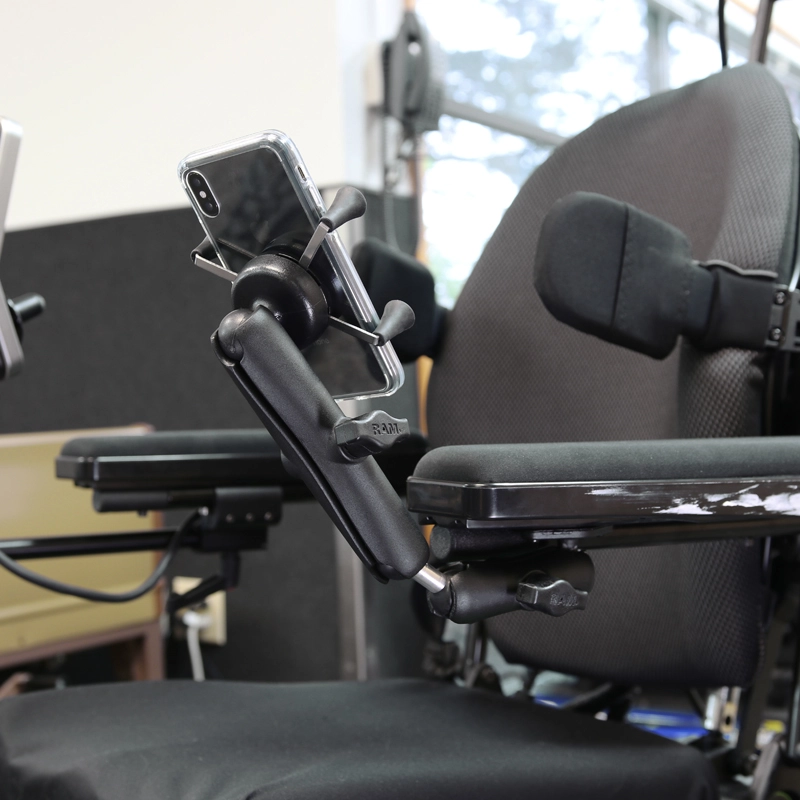

RAM® X-Grip® Phone Mount for Wheelchair Armrests
RAM-B-238-WCT-2-UN7 - X-Grip® 小
RAM-B-238-WCT-2-UN10 - X-Grip® 大


OVERVIEW
This kit includes a B size RAM® diamond ball base with a universal hardware pack that accommodates the armrest on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included long double socket arm, double ball adapter, and medium double socket arm, connect and adjust the RAM® X-Grip® universal phone holder to your ideal position. The popular, spring-loaded RAM® X-Grip® provides a perfect fit for a wide variety of phones.

HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts

HOLDER DIMENSIONS
RAM-HOL-UN10BU
Width Range: 1.75" - 4.5" = 4.44cm - 11.03cm
Depth Range: .875" max = 2.2cm

RAM-HOL-UN7BU
Width Range: 1.875" - 3.25" = 4.72cm-8.25cm
Depth Range: .875" max = 2.2cm

T-BOLT DIMENSIONS
Large: .48" x .95"= 1.21cm-2.41cm
Small: .375" x .593"= 0.95cm-1.5cm

HOLE PATTERN: 2-Hole AMPS: 1.912"

BALL SIZE: B Size (1")

WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS: Marine-grade aluminum, High strength composite, Stainless steel
