RAM® UN4背夾
RAM-HOL-UN4-238U - 含球
RAM-HOL-UN4U - 不含球

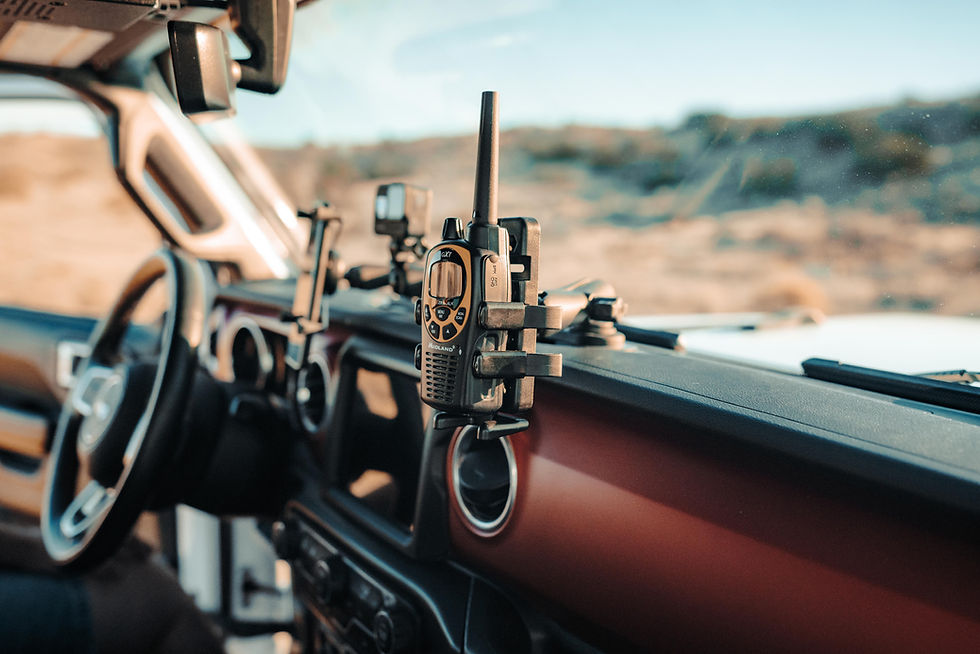

RAM® Finger-Grip™ Universal GPS and Radio Holder
OVERVIEW
The RAM® Finger-Grip™ is a universal holder that can accommodate a wide range of devices including GPS, handheld radios, phones, bluetooth speakers, and much more. Included with the holder are three sets of four flexible rubber-coated fingers to grip your device. The main backing plate consists of multiple slotted holes where any set of finger grips can be positioned to hold your device firmly. When positioned correctly, your device can easily wedge in and out of the holder; suited for any rough environment. Also included are two sets of optional top and bottom supports to add even more stability to your device if needed. The back of the RAM® Finger-Grip™ contains multiple 4-hole AMPS hole patterns for connecting to any RAM® components using the included set of nuts and bolts. Mount your handheld device virtually anywhere with the RAM® Finger-Grip™. See compatible device dimension ranges below.
HARDWARE INCLUDED
Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock NutsHOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"HOLE PATTERN
(3) 4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.45 lbs.
選配零件
RAM® Diamond Ball Base
RAM-B-238U
OVERVIEW
The RAM-B-238U ball base consists of a 1" B size rubber ball connected to a 2.43" x 1.31" diamond plate. The diamond plate features two holes that measure 1.912" from center to center, matching the industry-standard AMPS hole pattern. This diamond ball base is compatible with a wide variety of RAM® device holders and cradles.
HOLE PATTERN
2-Hole AMPS: 1.912"
PLATE SIZE: 2.43" x 1.31"
BALL/SOCKET SIZE: B Size (1")
WEIGHT CAPACITY: Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS: Marine-grade aluminum
PACKAGING TYPE: Poly Bag
WEIGHT: 0.1 lbs.
