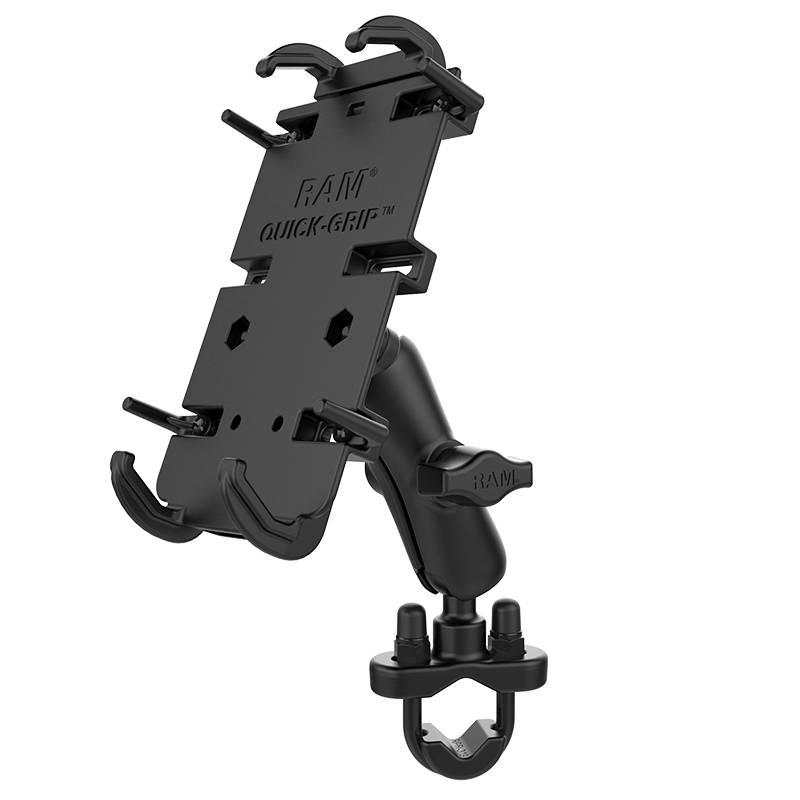

RAM® Quick-Grip™ XL Phone Mount with Handlebar U-Bolt Base
OVERVIEW
This version of the spring-loaded RAM® Quick-Grip™ holder provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a RAM® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Height Range: 5.75" - 7.25" / 14.6cm - 18.41cm
Width Range: 2.625" - 3.625" / 6.66cm - 9.2cm
Max Depth: .72" / 1.82cm
CLAMP RANGE: .5" - 1.25" / 1.27cm - 3.17cm diameter
SOCKET-TO-SOCKET LENGTH: 1.75" OR 3"
BALL/SOCKET SIZE: B Size (1")
WEIGHT CAPACITY: Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS: Marine-grade aluminum , High strength composite
PACKAGING TYPE: Poly Bag
WEIGHT: 0.91 lbs.
