RAM® B-346油杯蓋固定座-側置球座
RAM® Offset Reservoir Cover Ball Base
RAM-B-346U
Overview

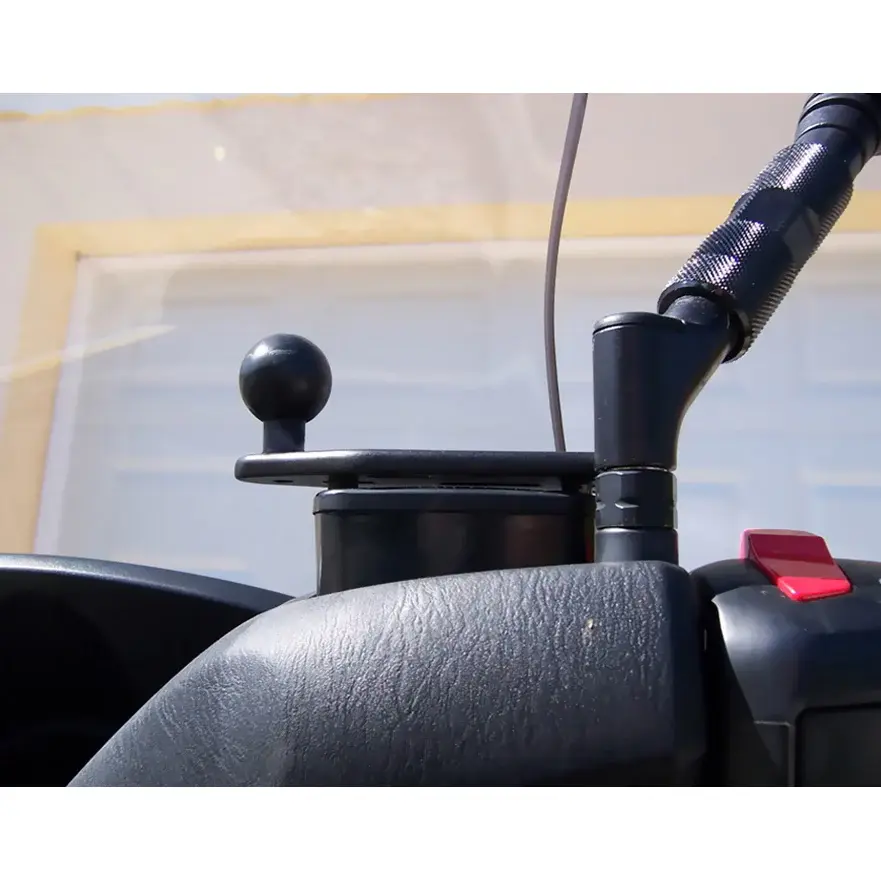

The RAM-B-346U base fits cleanly over your existing brake/clutch reservoir cover with the B size 1" rubber ball offset. Made of die cast aluminum with an overmolded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an additional reservoir cover, but instead a plate that mounts above the cover using the screw holes and longer screws of the cover. The kit includes three sets of screws of differing lengths. The center two slots are 2 7/16" center to center and are just under a .5" long.This mount is not compatible with the 2016 BMW R1200RT.
Hardware Included:
(4) M4 x 20mm Machine Screws
(4) M4 x 30mm Machine Screws
(4) M4 x 35mm Machine Screws
(4) M4 Flat Washers
(4) .188" Nylon Spacers
Hole Pattern : See Drawing
Plate Size: See Drawing
Ball/Socket Size : B Size (1")
Weight Capacity: Standard Use: 2 lbs , Heavy-Duty Use: 1 lb
Materials: Marine-grade aluminum
適用車型
RAM® Offset Reservoir Cover Ball Base
RAM-B-346UBMW
K 1200 RS 1998-2005、K 1200 LT、R 1200 GT 2002-2007、R 1150 RT
R 1100S、R 1150 RS、R 1150 GS、R 1200 C、R 1200 CL、R 1200 RTHonda
ST 1300、CBR 600 F4i、VFR 800Kawasaki
Ninja 500R、Ninja 650R、Z750S、VN1600、VN2000Suzuki
V-Strom、SV650、Burgman 400/650、GSX 1300R Hayabusa、Katana 600
GSX-R 600、Blvd.(all VL Senes)、GZ250Yamaha
FZ1、FZ4、FJR1300、V-Star 1300
