RAM® V型固定座-1吋球

RAM® Strap Hose Clamp Ball Base
Part#: RAM-B-108BU

OVERVIEW

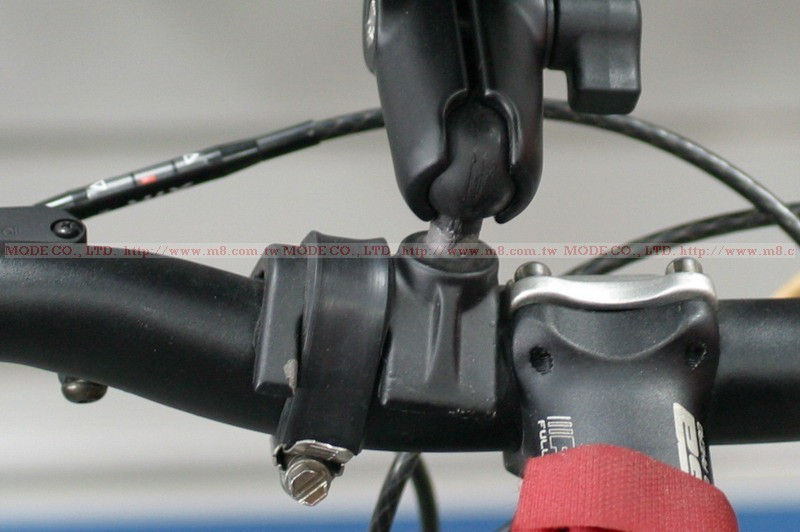

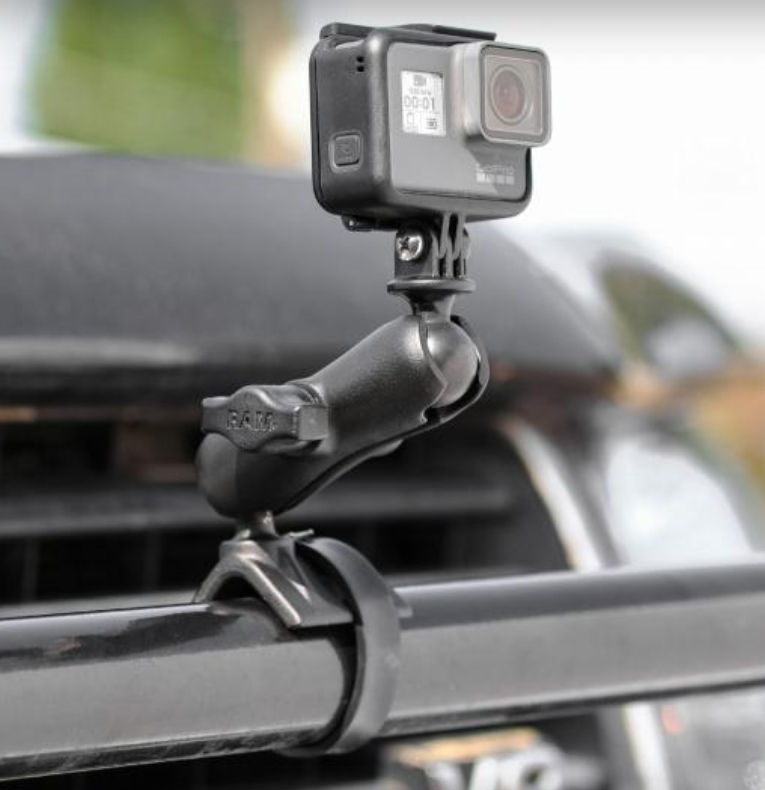

The RAM-B-108BU consists of a B size 1" rubber ball connected at a right angle to a V-shaped base, and accommodates rails from 1" to 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle-shaped plate on the rail and then wrap the metal clamp strap around the rail and plate. Tighten the knob on the metal strap with a screwdriver until it has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Beechcraft airplanes with a “throw over yoke."
HARDWARE INCLUDED
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
CLAMP RANGE: 1" - 2.1" diameter
BALL/SOCKET SIZE: B Size (1")
WEIGHT CAPACITY:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS: Marine-grade aluminum
PACKAGING TYPE: Poly Bag
WEIGHT: 0.28 lbs.
